Problem with QR codes/GS1 Data Matrix codes
I need to create a code for labels: an individual label with a GS1 Data Matrix code and a summary label with a barcode. My code looks like this
(01)40453958013406(3103)001000(15)290226(10)260927
The client said that the GTIN code is too short and that I should add a 0 at the beginning so that it looks like this: (01)040453958013406(3103)001000(15)290226(10)260927
But when I add a zero in the program, the rest of it—that is, (3103)/(15)/(10)—stops working and some other numbers appear. Could someone help me fix this?
-
The 01 AI should only be 14 digits long and so if you added a leading zero then that would cause the symbol to fail.
If you are adding the data in as one long string you will need to either remove or suppress the 6 fromt he end of the GTIN as BarTender will automatically calculate this.

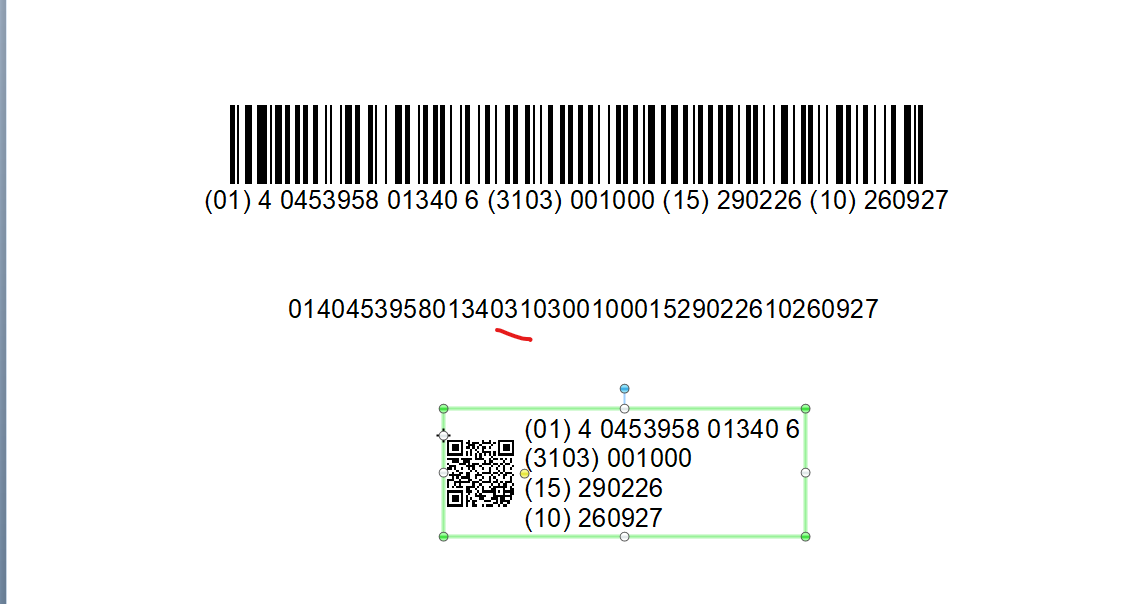

I have a GS1-128 symbol too on the image below as you can see
0
