Database Queries

Martin Fehr

• June 09, 2021 11:11

Hi,

I would like to fill in text fields with database queries via an excel sheet. I connected the excel sheet and implemented a filter with a query so I can use column_A for textfield_A and the matching column_B for textfield_B.

But now I want to do this multiple times in a document. But I can not create multiple seperate filters.



Example:

Excel Sheet:

A     | B

1     | Tom

2     | Peter

3     | Theo

4     | Louis



BarTender Document:

Textfield A with an input "2" -> Textfield A2 shall contain "Peter"

Textfield B with an input "4" -> Textfield B2 shall contain "Louis"



How can I get this to work?



Thanks!!

0

•

  Xabier Clemente

  Moderator

  ★ BarTender Hero ★

  • October 27, 2021 07:31

  Hi Martin!

  Thank you for posting your query in our Community Forums.

  BarTender's Records per Item feature within the Database connection setup wizard should be able to help you with this:

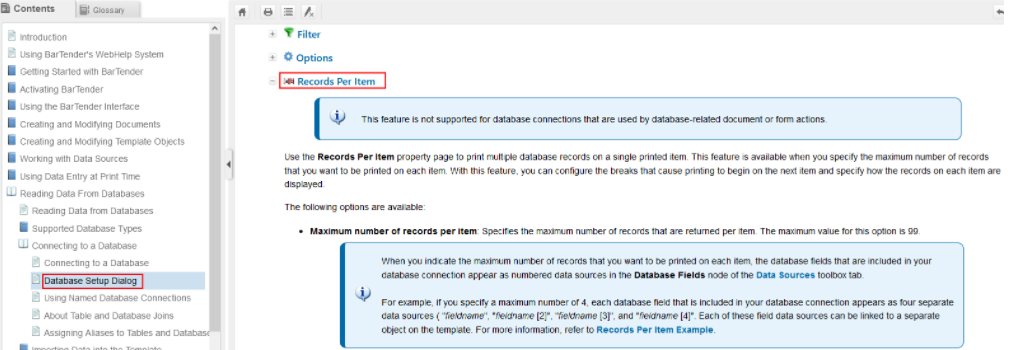

  • Database Setup Dialog

  Focus on the section about the "records per item":
  ​


  This example illustrates how you can populate multiple records of a single database field on a printed item.

  1. Create a new BarTender document and set up a new database connection.

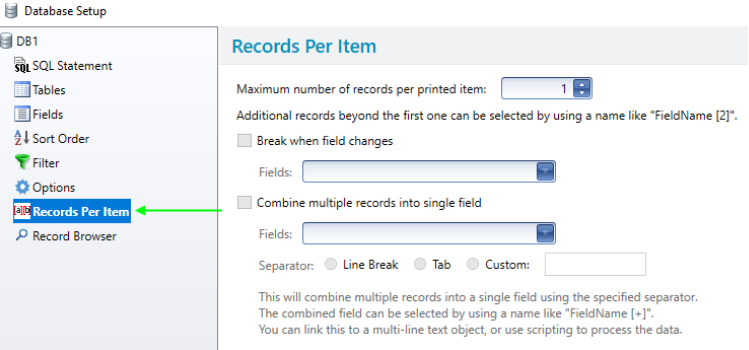

  2. Go into the Database Connection Setup→Records Per Item section.
     ​

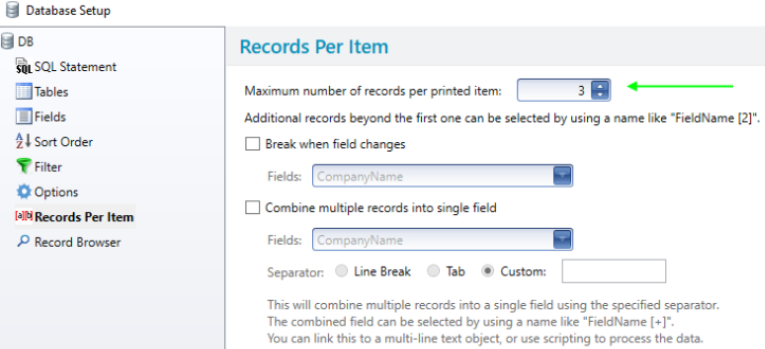

  3. Set the maximum number of records you want per printed item. For this example, it is set to 3.
     ​

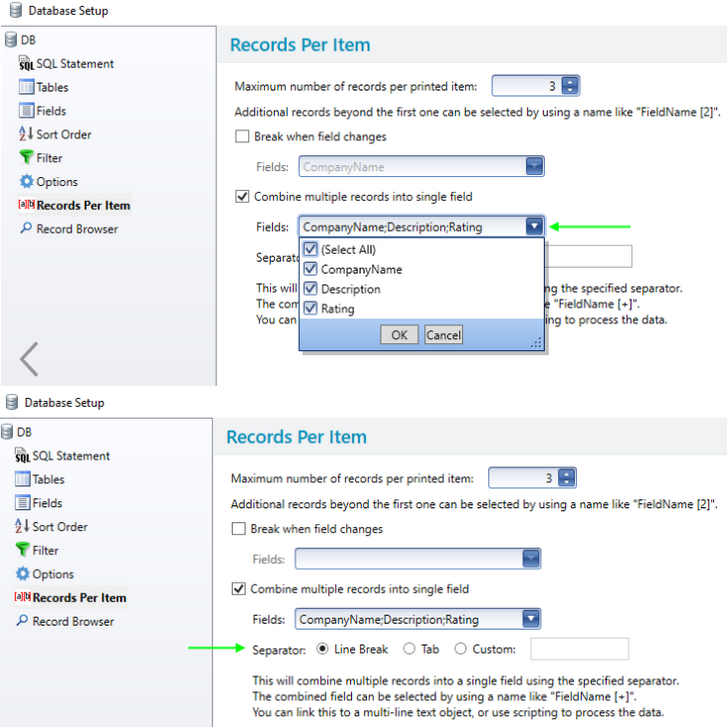

  4. Enable the checkbox option combine multiple records into a single field. Select the field "drop-down > enable the checkbox to (Select All)" and then click "Ok". Set the separator to Line Break.
     ​

     ​
  5. Click ok to the database connection setup.


  6. Now on the template design, create a normal wrapped text object and place it on the template→go into the text properties.

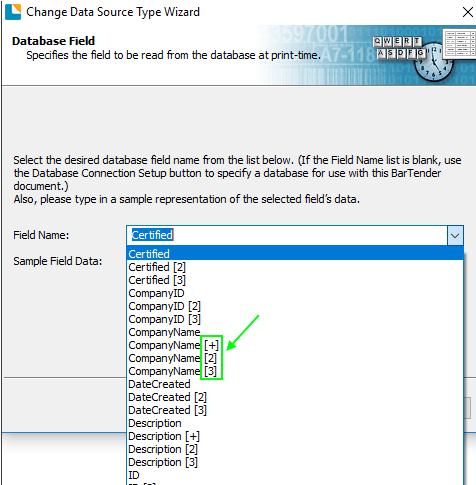

  7. Select the default data source→change the type to a database field using the data source wizard. When prompted for the field to use, notice the names of the available fields in the drop-down list. Some database field names have a "+" symbol or number value next to them. The "+" symbol indicates that it will display all the records for that particular database field. The number value indicates it will display a particular number record.


     ​
  8. For this example choose CompanyName + for the database field to use. Click finish to the data source wizard→close the text properties window.

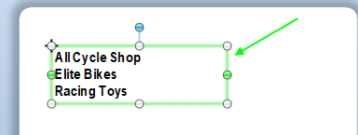

  9. You can see it displays the 3 records for the CompanyName database field for a single printed item.
     ​


  I hope this is what you were looking for; let us know how it goes!
