Control Charaters field exit in barcode

Yves Cauwenberghs

• 3. März 2022 15:13

hi,

I need to create a EAN 128 barcode that exists of 2 different fields (user & password) but both data should be in 1 barcode with a field exit between both fields

Example

User Z013

Pasw Z013B

this should create 1 barcode but when I scan it it should fill in the username; field exit & fill in the password in the next field.

Thanks

0

•

  Peter Thane

  ★ BarTender Hero ★

  • 3. März 2022 15:55

  Do you mean a GS1-128, in which case you will need an application identifier too or just a standard Code 128?

  Not sure what you mean by Field Exit as this I understand can vary depending on the emulation. It looks that this could be a Horizontal Tab in some instances or a Carriage Return in others (hex 09 or OD).

  Working on a Code 128 with a HT as the field exit, I would make the barcode up of 3 substrings with the middle string being the tab command:

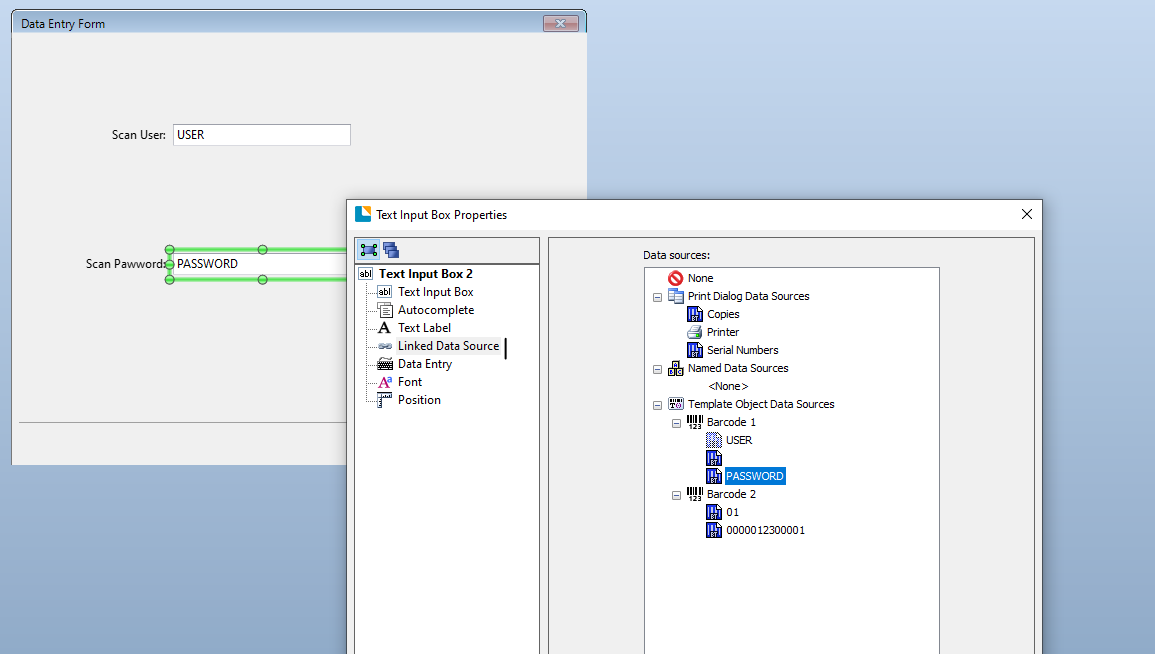

  On a Data Entry Form I would then add the two entry fields and link them to the appropriate sub strings. As you can see from the above I gave them default values to make it easier to distinguish them when linking the input fields.













  0
