Macro Prefix for Datamatrix

Richard Davey

• 6. Juli 2020 15:39

I have a customer asking for a 12 Format Type, Structure should look like this [)><RS>12. I do not see an option to change the header information.

0

•

  Peter Thane

  ★ BarTender Hero ★

  • 6. Juli 2020 18:38

  No idea what a 12 Format Type DataMatrix code is. Have the provided you with a full spec for the symbol or said what standard it is meant to follow?

  0
•

  Al Perez

  ★ BarTender Hero ★

  • 16. Juli 2020 16:31

  Hello Richard, thanks for reaching out to us in the Community forums!

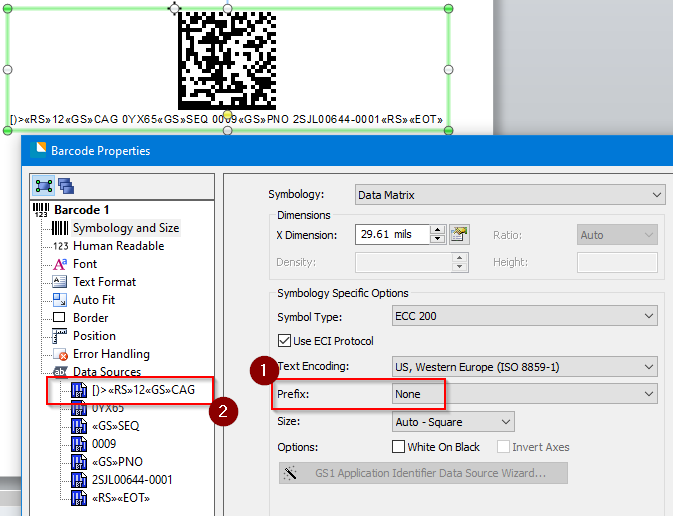

  Currently, BarTender Suite doesn't have a preset for Macro Prefix 12, so instead, you'll want to set the prefix to None and then hardcode it using data sources, like this:





  I hope that helps!
