Total qty using VB script

mis mis

• 18. September 2019 07:54

Hi all,

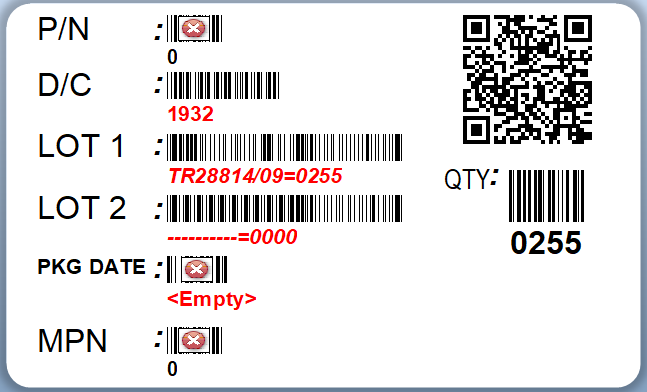

I am really not familiar and used to VB scripting. I got create a label, and need to add qty at LOT 1 and LOT 2 (if there is value) and make total qty appear at QTY bar code.



Please advise.



Thank you

0

•

  Peter Thane

  ★ BarTender Hero ★

  • 18. September 2019 16:22

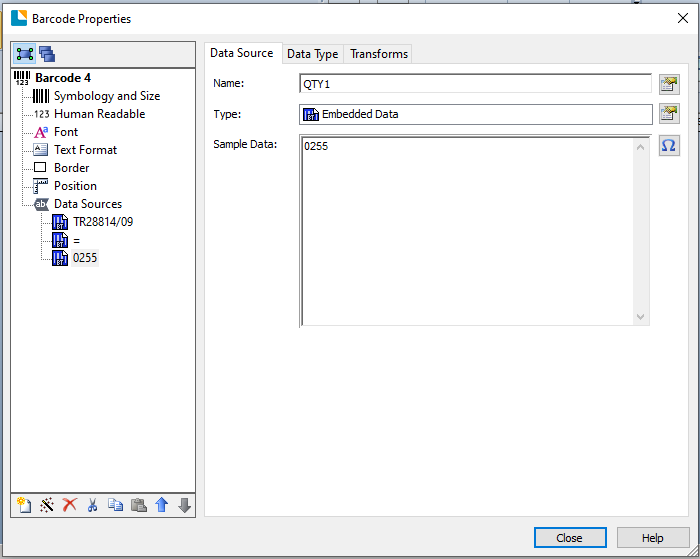

  I am guessing as you Named the 0255 field QTY1 that the other field is QTY2 which will make things easier.

  As the data is variable and this is not a Database sourced field assume it is entered at print time on a Data Entry Form.

  Go into the Properties of your total barcode and change the source to VB Script and make it an Event Controlled Script type and then press the  button to edit the script.

  In the OnAutoSelected event change the value to whatever on screen default you want, eg 99 by typing in the middle mox

         Value = "99"

  In the column on the left scroll down and select OnPostPrompt and then in the central box type in

         Value = CInt( <click on QTY1 in column on right > ) + CInt( < click on QTY2 in column on right> )

  which should look like this

        Value = Int(Format.NamedSubStrings("QTY1").Value) + Int(Format.NamedSubStrings("QTY2").Value)

  and then Close to come out of the VB Edit window.

  If the total filed should be 4 characters long then use the Transforms>Number of Characters option to amend this leaving the default padding with leading 0

  I hope this helps

  Pete
