Print to PDF using print command script

Guy Heirman

• 18. Oktober 2024 09:18

Hello,

I'm trying to print  a label using the command script:

%BTW% /AF="C:\Temp\Test\label1.btw" /D="%Trigger File Name"  /PRN="PDF" /PRNFILE="C:\Temp\Test\%IntegrationName%.pdf" /R=3 /P
%END%

This is printing the label in PDF but it uses the A4 format while the label is 104mmx49mm (defined in the label1 document). When testing the print PDF in bartender designer i get the correct format as pdf. Is there a way to make this work as well with the command script ?

0

•

  Peter Thane

  ★ BarTender Hero ★

  • 22. Oktober 2024 13:33

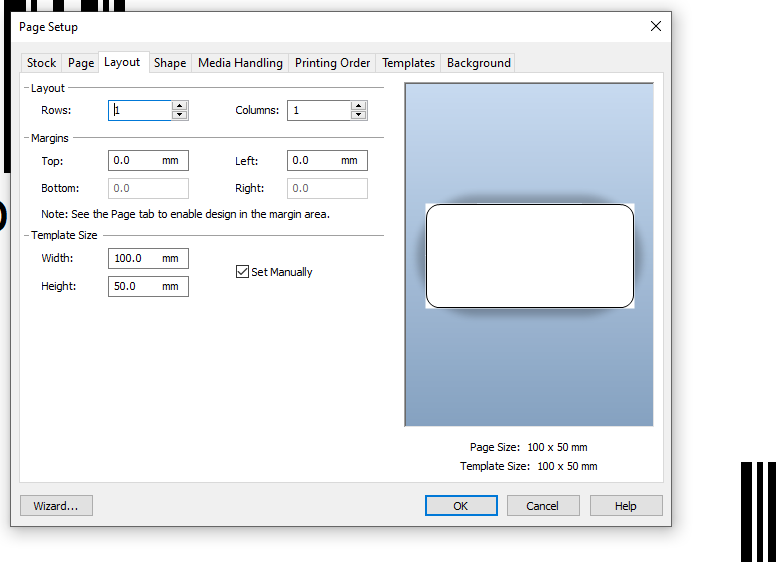

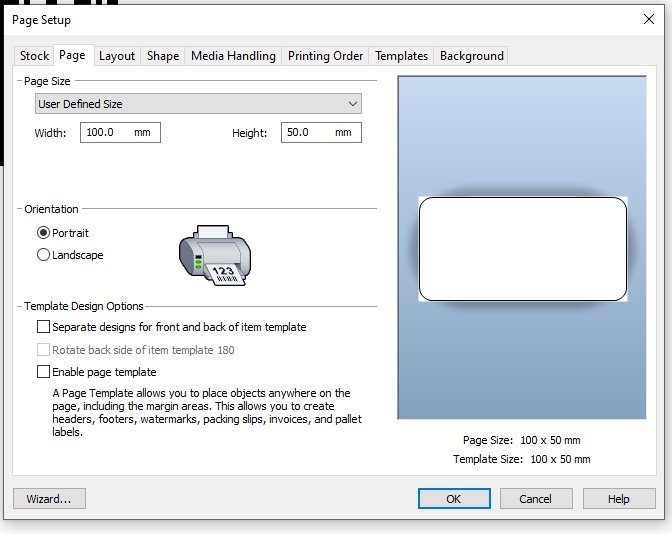

  It seems to work correctly for me. I would suggest checking the Page Setup settings in the label, mine is set like this



  and





  0
•

  Guy Heirman

  ★ BarTender Hero ★

  • 24. Oktober 2024 09:25

  Thanks for your reply. I had tried that also but in my case i didn't work.

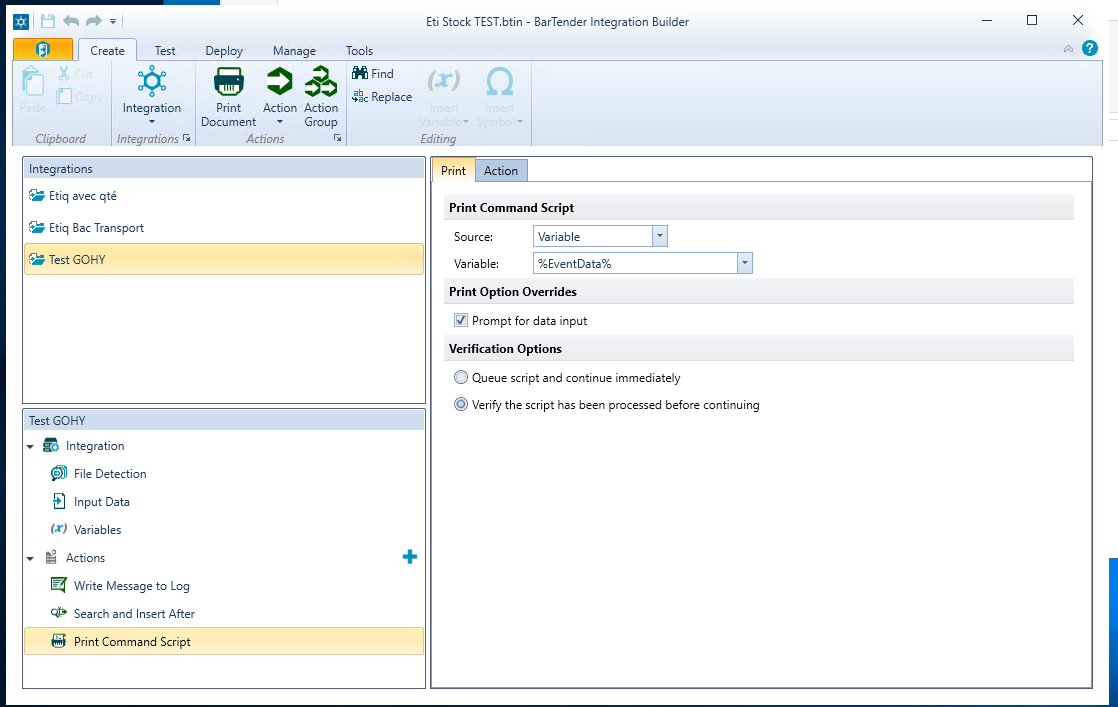

  I have selected the "Prompt for data input" and this seems to do the job but i still don't understand why exactly ...



  0
