GS1 DataMatrix Barcode - Bartender adding space before first character

Imogen Loft

• 5. Mai 2021 04:39

Hi,

A customer label requires a 2D barcode. I'm using the GS1 Datamatrix barcode on my template design.

This is what the data is supposed to look like:



I have the barcode set up so that the data sources come from an Excel database (see below).

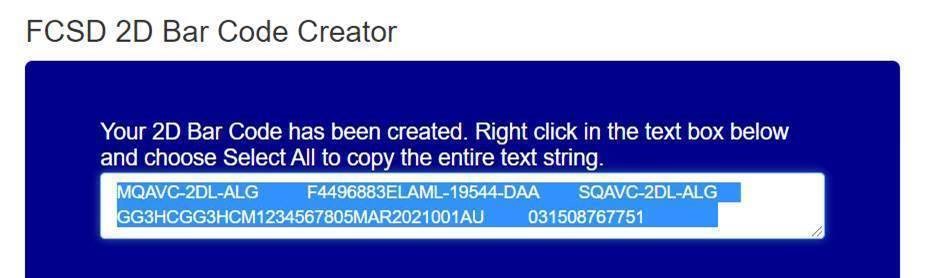

The problem is that when the barcode is generated through Bartender - a SPACE appears before the first character. See the screenshot from an app which checks the data string – the data is highlighted in red because there are errors. The error is that there is an extra space at the beginning – which I’ve highlighted to show.

When that space is removed, the 2D scans correctly.



This is doing my head in so any advice would be appreciated!



Thanks



0

•

  Peter Thane

  ★ BarTender Hero ★

  • 5. Mai 2021 19:15

  It looks to me like it should be a standard Datamatrix as the code is not following the GS1 format with the application identifiers. A GS1-128 also starts with a function 1 character and so that is showing up a s space when you scan I would suggest.

  0
