Serialization: How can I increase a serial number when another serial number reset

Kritsada Tattanon

• 1. April 2021 09:49

I have two pattern of serial number in format NNNNNNC

Where:

    NNNNNN is 6 digits of number [000001 - 999999]

    C is 1 digit of character [A - Z]

I want to increase C when NNNNNN reset to be as 0000001A ... 999999A ... 0000001B ... 999999B  ... 000001C ... 999999C ...

Now, I've created 2 serial number objects for NNNNNN and C.

    for NNNNNN, I set event as "Standard" and reset to 000001 when its value reach 999999. for C, I have no idea how to make it increase when the NNNNNN reset. Could you please guide how to do that?

Thank you.



0

•

  Peter Thane

  ★ BarTender Hero ★

  • 1. April 2021 14:03

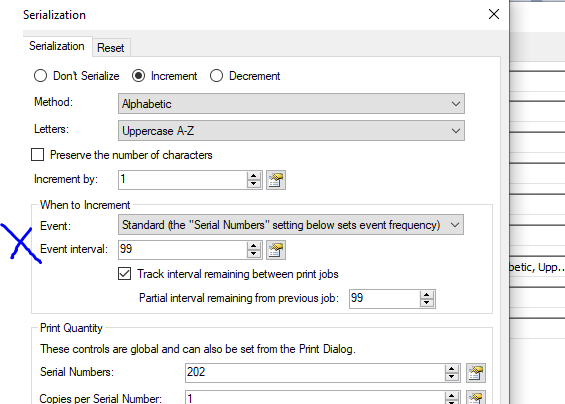

  For the second sub-string you need to set the reset Event Interval to 999999 as per the image below.

  I just used 99 so I could easily test with a print preview to check it was working

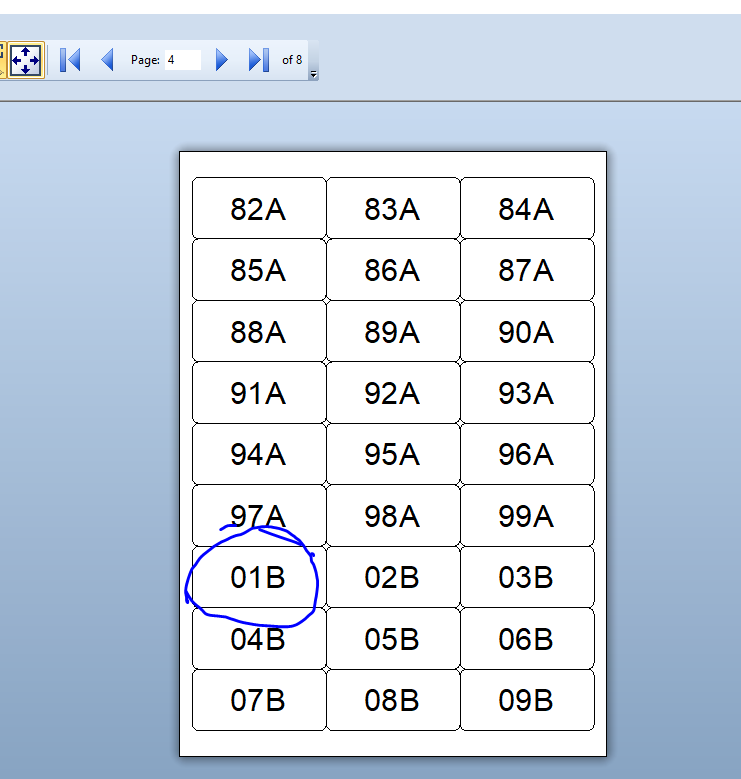

  Page 4 of preview of 202 labels:



  0
