Multiple text filed link with barcode without database

Parasu Raman

• 4. Januar 2023 17:20

For Example Product Code, Lot No month, date & Year field how to link in one barcode object.

0

•

  Sahvanna Canary

  Moderator

  ★ BarTender Hero ★

  • 5. Januar 2023 15:44

  Hello Parasu,

  You can add multiple items to one barcode by adding them as additional Data Sources. Right-click on your barcode, select Properties > Data Sources, then in the bottom left there should be a little page icon. Select that to add more data sources to this object (your barcode), then change each of the data sources to link your desired value or text object (product code / lot no / etc.) You can link them via Object Value or via Named Data Sources.

  If you have any questions, here's some videos going more in depth about data sources:

  • https://support.seagullscientific.com/hc/en-us/articles/205824818-Overview-of-data-sources-Video-5-16-
  • https://support.seagullscientific.com/hc/en-us/articles/206848457-Sharing-data-between-objects-Video-6-09-
  •

  0
•

  Peter Thane

  ★ BarTender Hero ★

  • 5. Januar 2023 16:22

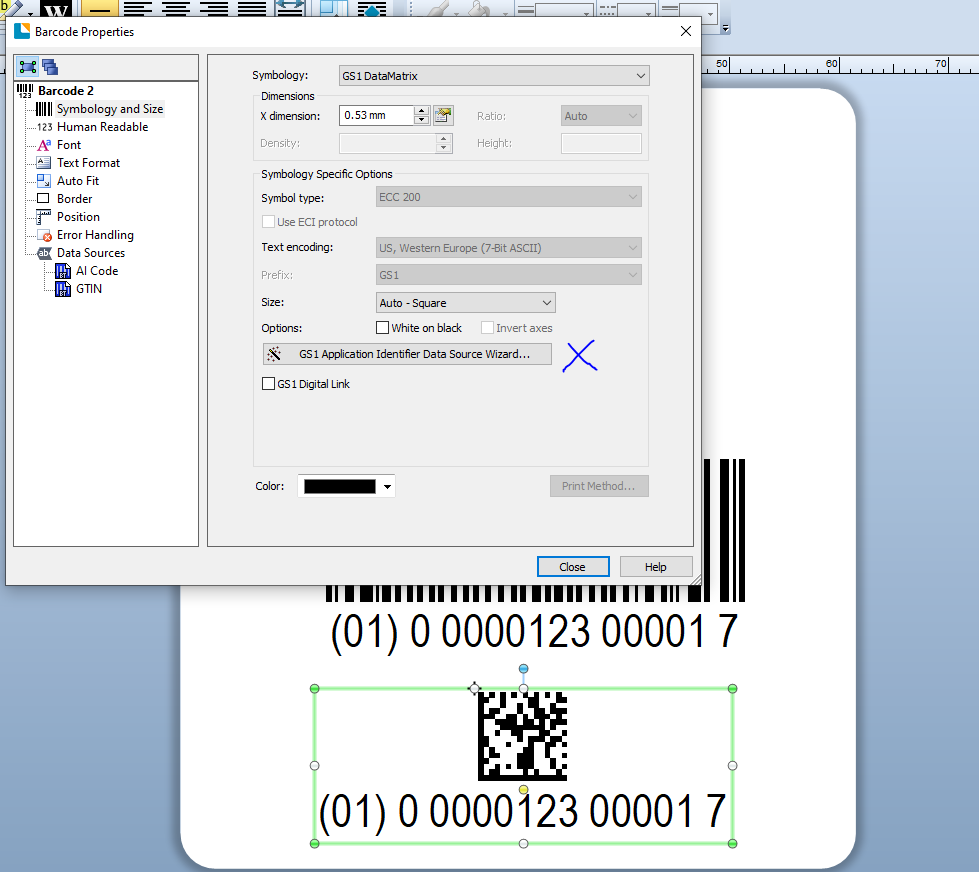

  As above although as it sounds like you maybe trying to create a GS1 symbol of some kind, you may want to use the Application Indentifier wizard as that will help to guide you through this process.



  0
